In today's world where every inch of land is precious, space is the greatest asset. Whether in schools, shopping malls, or residential areas, the number of bicycles is increasing, and surface parking lots are insufficient. However, two-tier-bike-rack completely change this situation.
The biggest advantage of two-tier-bike-rack is their ability to fully utilize previously wasted overhead space. Simply put, where one parking space could previously accommodate one bicycle, now one space can easily hold two. Your parking density increases by 100%, or even more. A space that could previously accommodate 50 bicycles can now accommodate 100 or even 120.
What's the use of the saved space? The focus isn't just on parking more bicycles, but on making your space more comfortable and free.
The saved space can be transformed into a small garden for children to play in, or more space can be freed up for outdoor rest areas or activity areas, attracting more foot traffic.

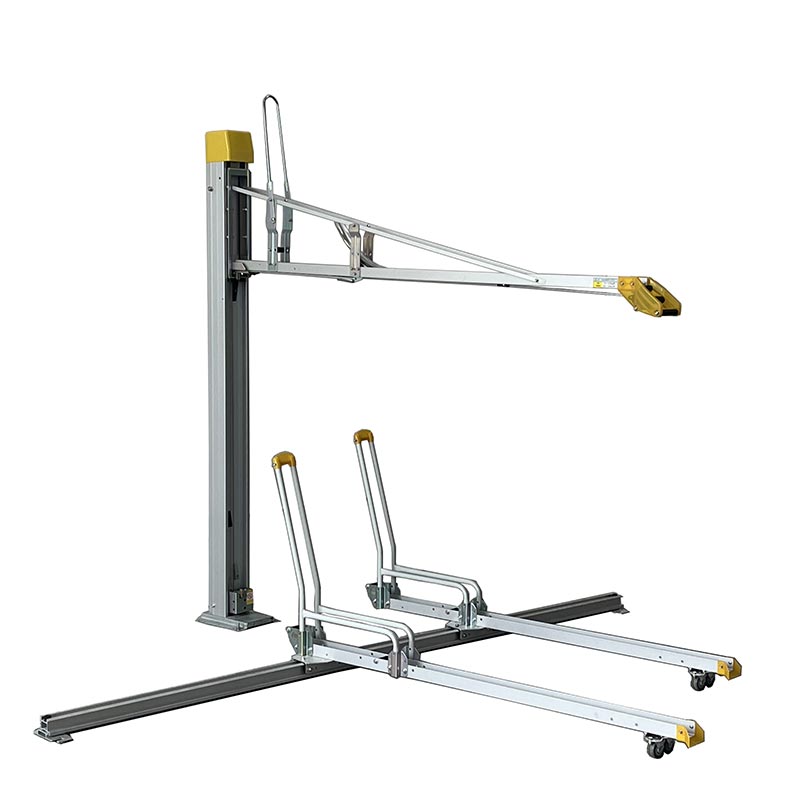

Our professional two-tier-bike-racks are designed with a super-effort-saving assist system (such as air springs). With just a slight push, the shelf will automatically rise to its position, as easily as lifting a piece of light foam.
| Parameter | Specification |
|---|---|
| Product Name | Gas Spring Assisted Aluminum Alloy Outdoor Double-Layer Bicycle Rack |
| Model Number | F-QLH20 |
| Material | Aluminum Alloy (Posts, Lifting Frame, Sliding Bicycle Carrier) |
| Unit Dimensions |
Vertical Lifting Frame: 1970mm (L) x 220mm (W) x 1820mm (H) Sliding Bicycle Carrier: 1570mm (L) x 100mm (W) x 720mm (H) |
| Color | Light Gray (Customization Available) |
| Parking Capacity | 2 Bicycles Per Unit (1 on Upper Layer + 1 on Lower Layer) |
| Load Capacity |
Upper Lifting Frame: 15 - 22 kg Lower Sliding Frame: ≤ 40 kg |
| Core Mechanism | Gas Spring Assisted Lifting |
| Installation Method | Fixed to the floor with expansion bolts |
| Installation Angle | 10° (Customization Available) |
| Recommended Clear Height | 2500mm |
| Maintenance Requirement | Minimal |
