Xinzhongsen is leading China bicycle parking racks manufacturers, supplier and exporter, which emphasizes on user's feedback and continues to improve the products. The Wider Tray Bike Rack with Lock and Footbrake is an innovative bicycle parking solution launched after years of research and development in order to enhance the user's experience.
Model Number: D-70mm-LBSR
Product Origin: China
Payment: T/T, L/C
Shipping Port: Xiamen

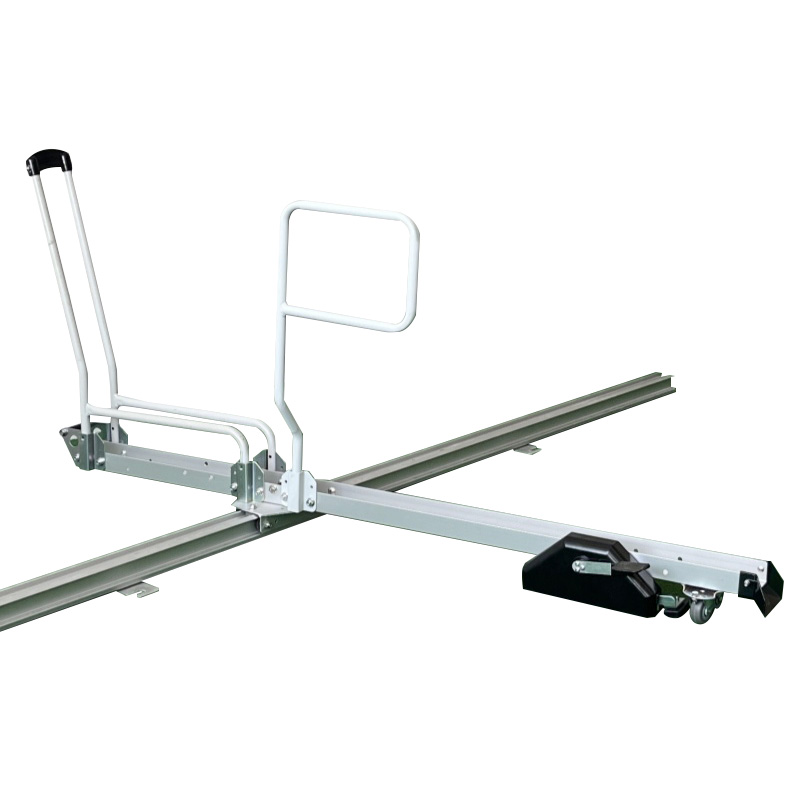

To meet the storage needs of wide tire bikes, we have carefully developed the Wider Tray Bike Rack with Lock and Footbrake, a unique rack designed to store bikes with 2.5-inch-wide tires, ensuring that all kinds of wide-tire bikes can be placed securely. To make it easier for users to prevent theft, each rack has a special locking bracket, providing cyclists with peace of mind that their bikes are safely secured. In addition, the rack is also equipped with a footbrake when the user needs to park or retrieve the bike, just step on it gently to fix the rack and prevent it from sliding from side to side, which greatly improves the convenience and stability of use.
| Product Name | Wider Tray Bike Rack with Lock and Footbrake |
| Model Number | D-70mm-LBSR |
| Material | sliding bike rack: Aluminum alloy |
| Measurements | Sliding bike rack: L:1570 * H:720 （mm） |
| Colors | Light grey or customized |
| Capacity | 1 bike per rack |
| Loading | Sliding bike rack:≤40KG |
| Mount | fixing to floor using expansive anchor bolts. |
| Installation Angle | 10° or customized |
| Maintenance | Minimal maintenance required |
◇ Very easy to use
A slide rail is mounted on the bottom of the Bike rack, which can be set according to your needs, and the Wheel channel is equipped with casters, which make it easy to slide the bike rack from side to side on a flat surface.
◇ Accommodates different types of bikes
The inner width of the wheel channel of this Bike rack reaches 70mm, which can be used for all kinds of mountain bikes, e-bikes and so on.
◇ Comfortable parking experience
Even if each rack is full of bikes, the handlebars will not get stuck. When you park or pick up your bike, just gently push the bikes on both sides of the rack to the left and right, and you can have enough space to park or pick up your bike.
◇ With footbrake, users can park the bike more conveniently.
◇ With locking bracket for the security of the bike.
◇ Easy transportation and installation
◇ Low maintenance
Green cycling and storage
- Recyclable and environmentally friendly materials
Possible locations
- Both Indoor and outdoor use.
Installation
Wider Tray Bike Rack With Lock And Footbrake can be installed at the angle of 10°，30°，45° to accommodate different situations , particularly useful for sites with narrow aisles.
Lower Sliding bike rack: Angle 10°-Center to center distance of 240mm.
Delivery
Current lead time is 7-9 weeks from receipt of your written purchase order. Extra time may be needed if extensive customization is required.
Maximize your cycle storage capacity and encourage sustainable transportation with our Wider Tray Bike Rack with Lock and Footbrake.
Contact us today for a quote!
We look forward to cooperate with you and to work towards a brighter future with you.
